Condensate Rapid Heating & Injection System by Thatreactordude

Thatreactordude
Thatreactordude
6 / 0
22nd February
3rd April

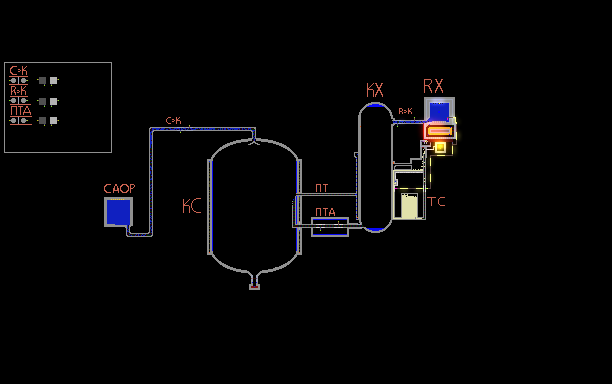

My own idea for mitigation of a temporary Loss of Coolant Accident in an RBMK-1000/1500. The way it works is by taking water from the main circuit, mixing it from SAOR and heating SAOR water then discharging it back to RX. WATER EQUALIZATION ON.
rbmk machine water chernobyl nuclear reactor power

Comments

  • Thatreactordude
    Thatreactordude     3rd April
    Update 8 Apr 3 4:11PM, changed more setpoints as necessary, replaced NBLE gas with hydrogen as hydrogen seems to provide better heat transfer, other small tweaks.
  • Thatreactordude
    Thatreactordude     3rd April
    This only simulates an auxiliary system. The water from the main circuit is labelled "RX".
  • QuackAByte
    QuackAByte     2nd April
    where is the core
  • Thatreactordude
    Thatreactordude     2nd April
    Update 7 2 Apr 26 03:24PM, changed some automated setpoints to increase the amount of heating applied to RX water, other general improvements.
  • Thatreactordude
    Thatreactordude     29th March
    Update 6 29 Mar 26 4:25PM, added steam preheating system, other auxiliaries required and required logic for steam preheating. Eliminated odd high/low pressure zones outside of tanks where possible.
  • Thatreactordude
    Thatreactordude     20th March
    No more updates until I find something I can improve on quickly and easily or an issue or known problem that must be fixed.
  • Thatreactordude
    Thatreactordude     11th March
    Continuation of Update 5, nozzle spray design in KX and KS tanks improved.
  • Thatreactordude
    Thatreactordude     11th March
    Update 5 11 Mar 26 4:02PM, changed the way MWAX cooling circuit works, now fully automated instead of a "dumb" circuit. Strengthened KSrz oil tank walls to prevent gas leak. Improved the way KX from RX tank water flows into KX. Any issues will be fixed tonight or early the next morning.
  • Thereactorguy2054v2
    Thereactorguy2054v2     11th March
    Auatsjrguefh WHAT IN GODS NAME IS THISDSSSUENS AAA+
  • Thatreactordude
    Thatreactordude     10th March
    Update 4 10 Mar 26 4:56PM CDT, made several changes to tank "KC" including proper oil cooldown system using water heat exchanger, marker "KCp3 H (level) <12" (KSrz) is for oil tank reservoir. Also restricted level of GLOW coolant interacting with MWAX system to avoid excess cooldown rates that, irl, would be undesirable. Added physical debris collection in the oil circuit for tank "KC".
